Description

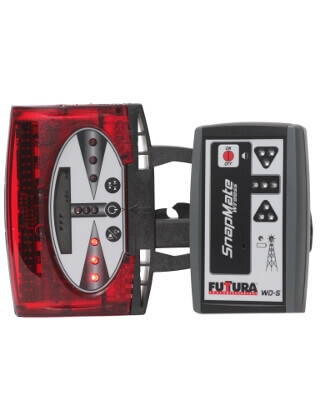

Futtura Combination Laser Receiver (Receiver Only)
Model Number: CR5-PB
The CR5 combination receiver is designed for all rotating lasers and can be hand-held, rod-mounted, or magnetically attached to your machine, making it the most versatile laser receiver in the industry, ideal for a number of applications, including General construction, Site Grading / Prep, Trenching, Footers, Septic tanks & leach fields, Sloping concrete floors, Any rotating laser application, Dozers, Skid steers, Backhoes, Excavators, Hand-held readings and Rod-mounted readings.
Remote Display Options (CR5-WRD)
Optional remote capability can improve productivity by enabling job-site functions to be performed faster and more efficiently. Ideal for situations where the receiver is out of sight of the operator, such as trenchers, box blades, or other machines. With the convenience of a remote display, the operator can view grade information from within the cab.
CR5 Features:
- Rugged & durable 100% waterproof housing
- Bright LED’s with green on-grade
- Strobe light rejection
- Adjustable volume control
- 240° angular reception
- 5″ laser capture height
- 3 accuracy settings
- Reception Range: 1,000′ (300 m)
- Detection Height: 5.0″ (127mm)
- Beeper Volume: High 105-110db, Low 70-75db
- Display Channels: 9
- Marking Notch Offset: N/A
- Battery Life: Normal 160 hrs
- Manufacturer’s Warranty: 2 years
CR5 Specifications
- Built-in Strobe Light Rejection: Yes
- Laser Capture Height: 5″
- Three accuracy settings: ±1/16″, ±1/4″, ±1/2″
- Operating Temperature: -20°C to 50°C(-4°F to 122°F)
- Battery Life (2AA): 180 hours minimum
- Auto Shut-Off: 30 minutes
- Reception Angle: 240°
