McLaughlin Vision GX2 Digital Locator

Description

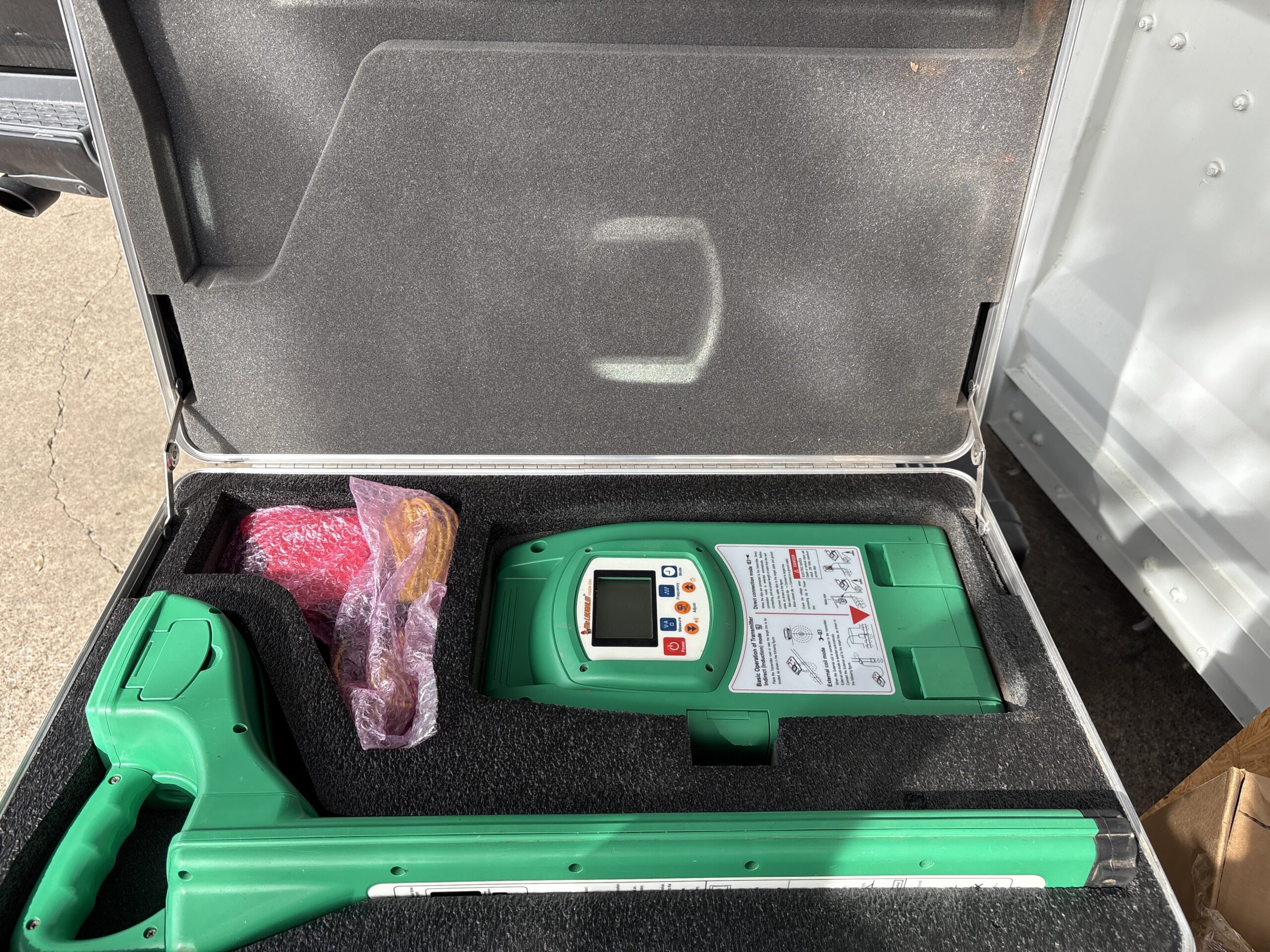

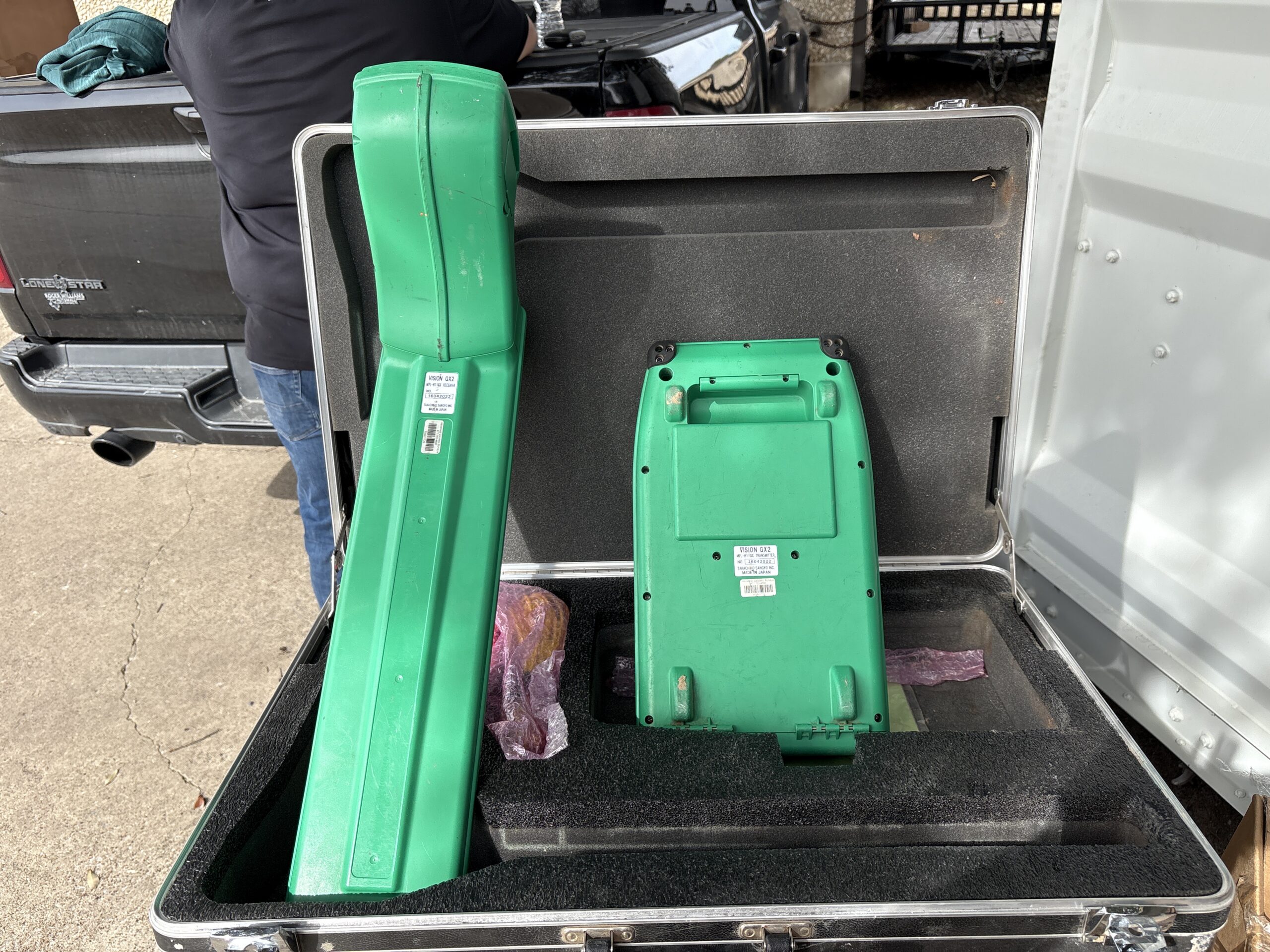

Complete.  New in Box

PN: C110060H  SN: 16042022

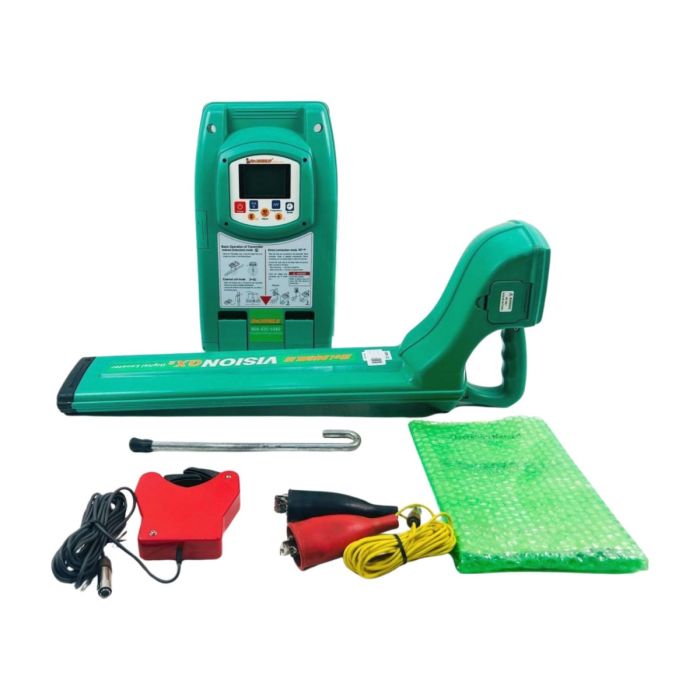

The McLaughlin Vision GX2 is a professional-grade, dual-frequency digital utility locator designed specifically for tracking underground utilities, gas distribution wires, and long fiber-optic runs. Manufactured by McLaughlin (a Vermeer company), it combines a high-output transmitter with advanced antenna technology to deliver precise depth measurements and line direction in challenging soil conditions.

Key Features: Dual-Frequency Injection: The system operates simultaneously or independently at two optimal frequencies:9.5 kHz: Ideal for long-distance tracing with minimal bleed-over to adjacent lines.38 kHz: Excellent for jumping high-resistance joints, unbonded loops, and tracing gas service lines.Peak and Null Tracking Modes: Peak Mode: Uses dual horizontal antennas to provide a sharp, maximum signal directly over the utility.Null Mode: Uses a vertical antenna to minimize signal drop, helping to quickly sweep an area and verify line center.Averaged Depth Readings: Equipped with three rubber-mounted internal antennas that continuously calculate and average the depth, reducing errors caused by distorted signals or nearby interference.High-Output Transmitter: Features a 7-watt transmitter that provides strong signals over longer distances compared to standard 1-watt or 3-watt locators.
