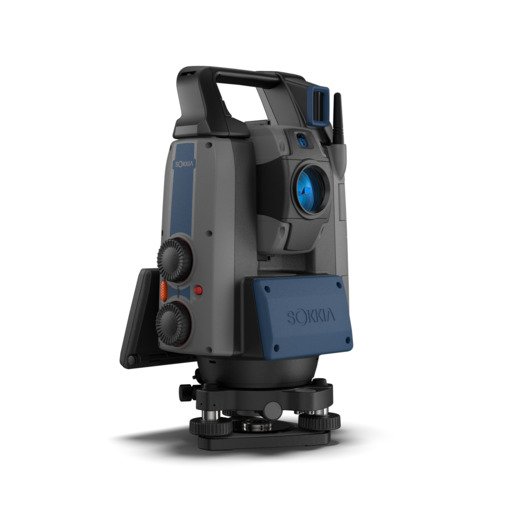

Sokkia iX-1200 Robotic Total Station

$23,300.00$29,400.00

Sokkia’s flagship iX Series ultrasonic robotic total station enables accurate and productive workflows for highly demanding survey or construction applications.

Clear
SKU: N/A Category: Tag:

Description

The iX Series robotic total stations are a trimmed-down, high-performance solution. You get the efficiency of a single-operator robotic system, the power of long-range reflectorless measurements, and performance as a hybrid positioning solution.

Ultra-powerful
UltraSonic technology is the driving force for the iX Series. The UltraSonic motors are the thinnest, lightest, and most powerful on the market – providing you with the smoothest and most accurate prism-tracking possible. It’s a difference you can see and hear immediately. With a rotation speed of 150° per second, no matter how fast you move, or how many obstacles are in the way, you cannot outrun the iX.

Ultra-accurate
Our new UltraTrac technology gives you increased prism-tracking strength in all conditions. Advanced instrument algorithms deliver the confidence you need to move ahead. It’s not that you lose line of sight, it’s how fast you can reacquire and get back to work.

Ultra-slim and reliable
Featuring a remarkably slimmed down design, the compact system is a third smaller and lighter than previous robotic instruments, yet twice as fast. Without traditional gears or wearing parts, the UltraSonic motors are much more rugged and durable – lasting four times longer than previous total stations, and we back it with a five-year warranty.

Features Include

  • Ultrasonic Motors
  • 30% smaller and lighter
  • TSshield Global service and theft deterrent
  • Three-year instrument warranty
  • Five-year UltraSonic motor warranty
  • Two Models available (500 & 1000 Series)



Additional information

Weight N/A
Dimensions N/A
Models

iX-1201, 1-second angle accuracy, iX-1203, 3-second angle accuracy, iX-1205, 5-second angle accuracy

Specifications

Telescope
Resolving power 2.5″
Magnification 30x
Angle Measurement
iX-1001 1″
iX-1003 3″
iX-1005 5″
Tilt Angle Compensation
Compensation Liquid 2-axis tilt sensor
Range ±6’
Distance Measurement
Prism EDM Range
6,000 m
Non-Prism Range
800 m
Non-Prism Accuracy 2+2 ppm
Prism Accuracy
1+2 ppm
Measure Time
Fine: 0.9 sec
Rapid: 0.6 sec
Tracking: 0.4 sec

Brochure

Sokkia iX Brochure >>
