Sokkia iX-603

Description

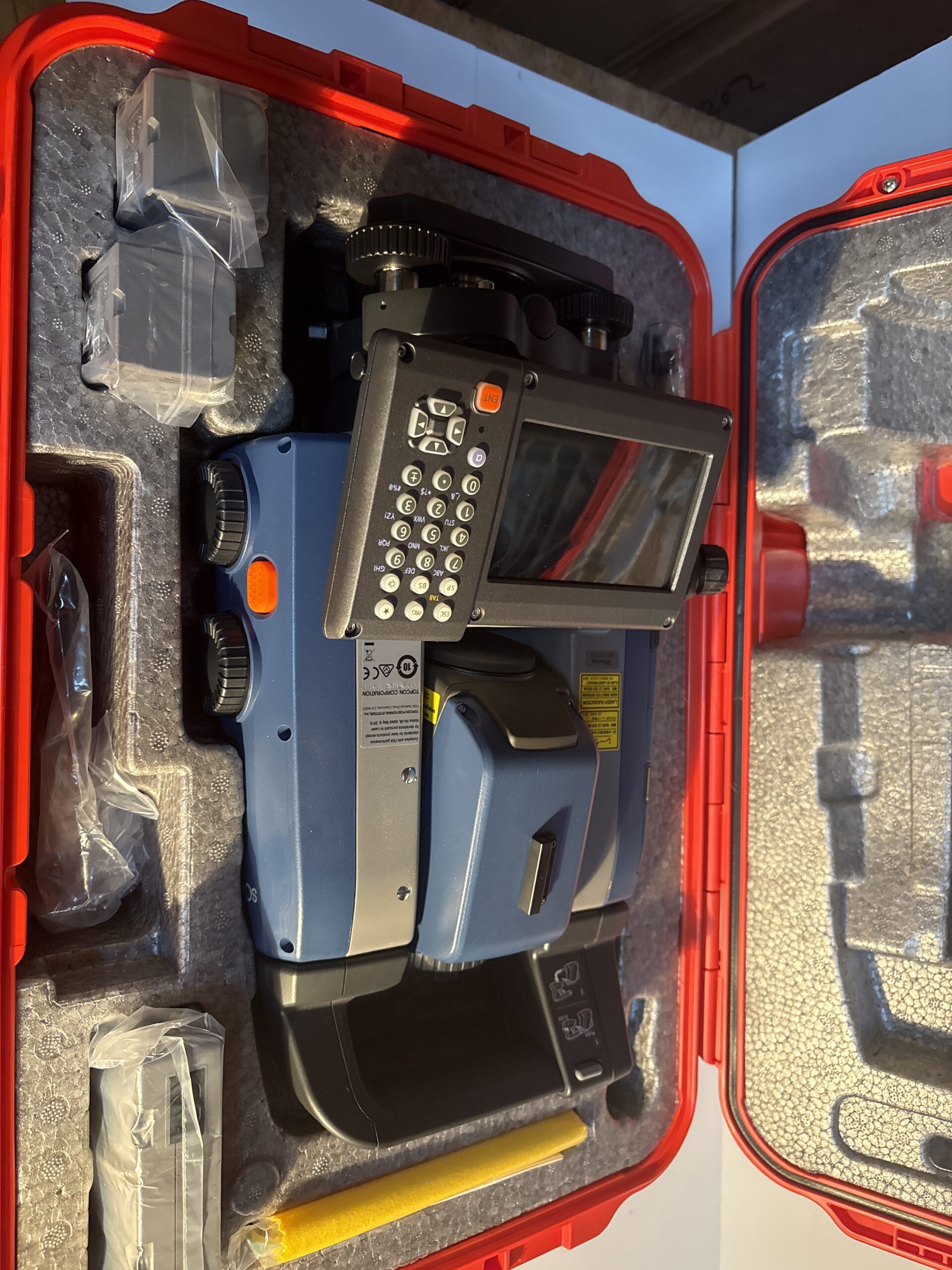

Complete; New in Box.

PN: 1044655-01  SN: XR001638

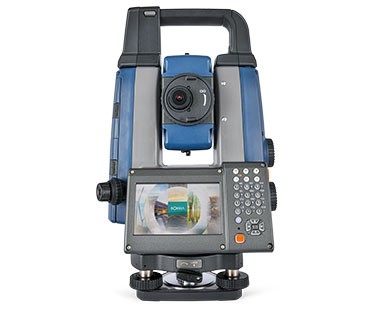

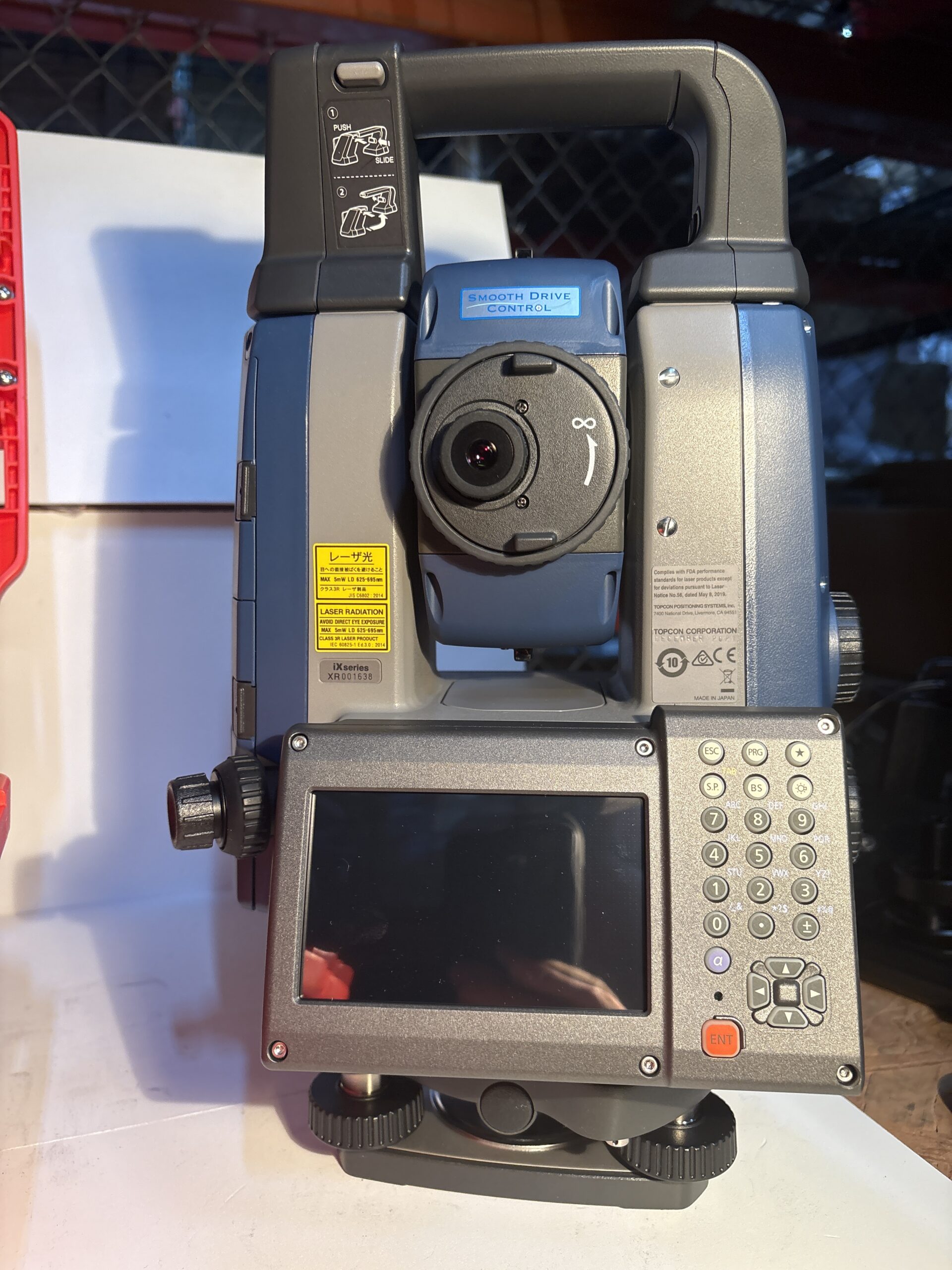

The Sokkia iX-603 is a high-performance 3-second robotic total station designed for one-person land surveying, construction layout, and digital positioning workflows. It utilizes gearless UltraSonic direct-drive motors and UltraTrac technology to deliver fast, smooth prism tracking and rotation speeds of 150°–180° per second.

Key Technical Specifications: Angle Accuracy: 3″ (3-arc seconds).Distance Measurement Range: Up to 4,000 meters with a standard prism; up to 600 meters in reflectorless mode.EDM Accuracy: 2mm + 2ppm (Prism) / 2mm + 2ppm (Non-Prism).Rotation Speed: 150° to 180° per second.Telescope: 30x magnification with a 2.5″ resolving power.Compensator: Liquid dual-axis tilt sensor with a working range of ±6′.Display: 4.3-inch transmissive TFT color touchscreen with a 24-key backlit keyboard.Operating System: Windows Embedded Compact 7. Environmental Protection: IP65 dustproof and waterproof rating.Weight: Approximately 5.7-5.8 kg, including the battery and tribrach.
