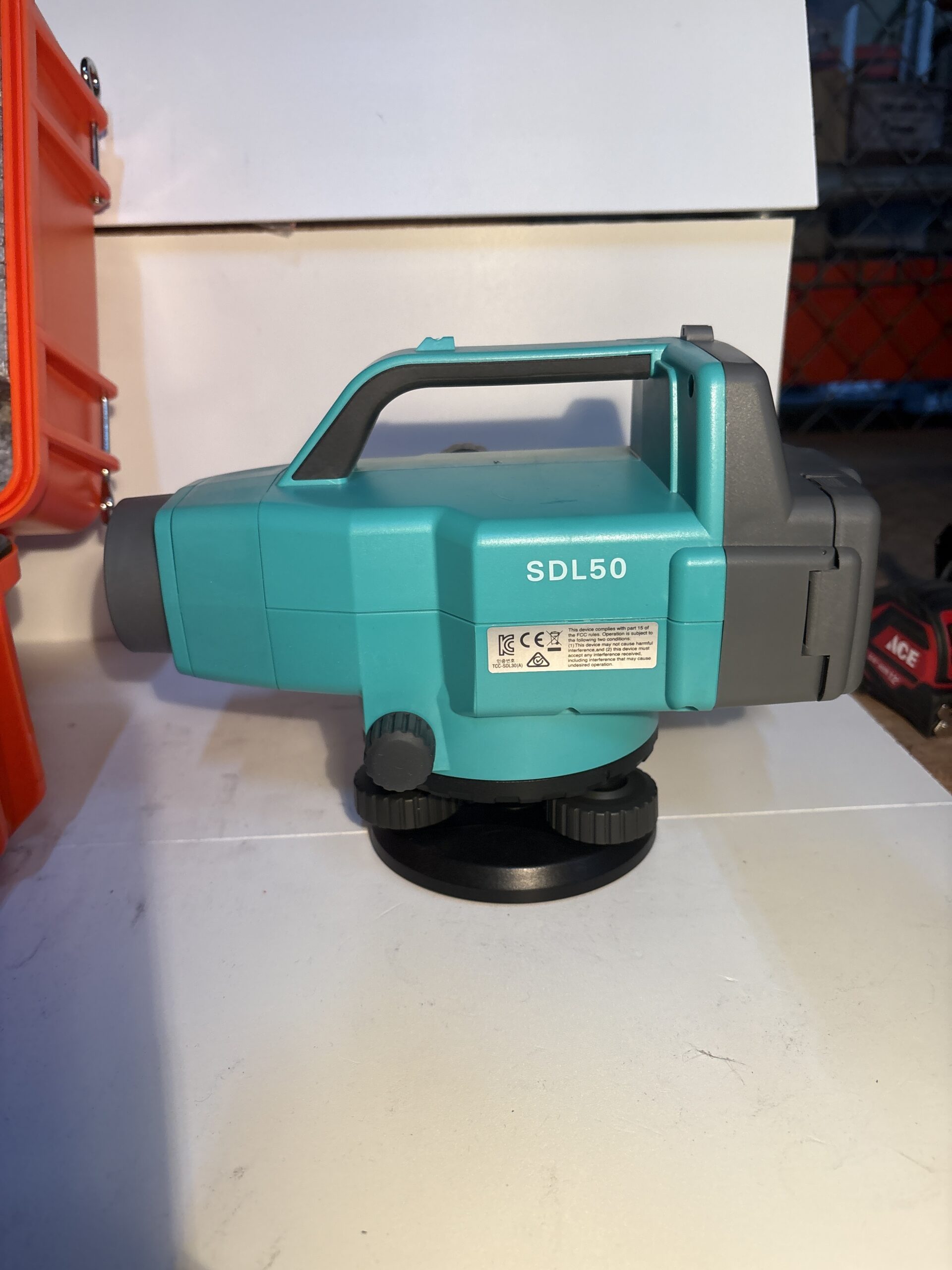

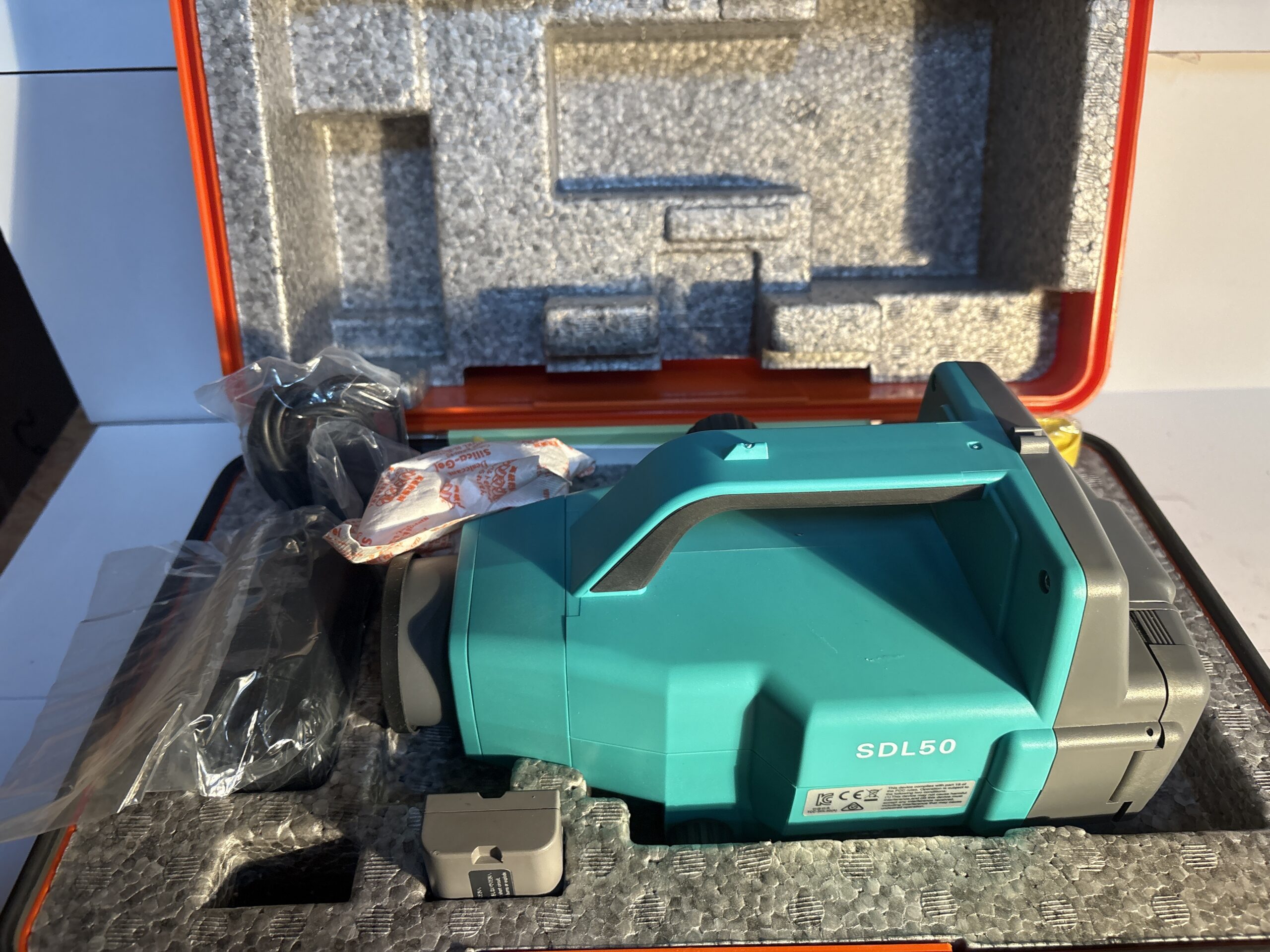

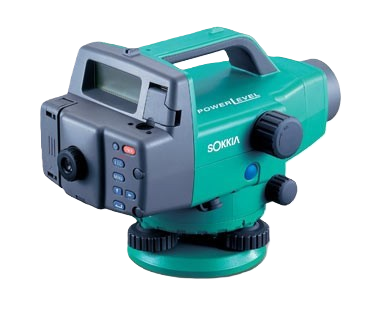

Sokkia SDL50-28x Digital Level

Description

Model Number: 2112350B0

The Sokkia SDL50 28x Digital Level is a high-performance digital level designed for precise elevation measurements and leveling tasks. Featuring a 28x magnification telescope, the SDL50 ensures sharp, clear images for accurate readings. With its one-button operation, the SDL50 simplifies height and distance measurement by automatically reading the RAB-Code staff, eliminating human error. Results are displayed on the screen within three seconds, boosting efficiency and productivity.

Features:

• Automatically reads height and distance from a RAB-Code staff with a single button press, displaying results within 3 seconds.
• Offers an accuracy of ±1.5mm per 1km double-run leveling.
• IPX4-rated water and dust resistance, ensuring performance in various weather and site conditions.
• Operates up to 16 hours on standard AA batteries, allowing for extended use without frequent replacements.

Specification:

• Distance Measurement
  • BIS30A staff: 0.6mm (0.024in.)
  • Height Accuracy (ISO 17123-2): 0.8mm (0.03in.)
  • Visual BGS staffs: 2.0mm (0.08in.)
• Distance Accuracy (D: measuring distance)
  • Electronic: 1.6 to 100m (5.3 to 328ft.)
• General
  • Sensitivity of circular level: 10’/2mm
  • Horizontal circle: Diameter: 103mm (4in.), Graduation: 1° (1gon)
  • Display: Dot matrix LCD (128 x 32 dot) with illuminator
  • Keyboard: 8 keys (7 keys on front panel, 1 key on side panel)
  • Data storage: 2,000 points internal memory
  • Interface: RS-232C, baud rate 1,200 to 38,400bps
  • Onboard programs: Elevation / Height difference / Cut & Fill setting-out / Setting-out distance / Height measurement
  • Water Protection: IPX4 (IEC60529:2001)
  • Operating Temperature: -20 to 50°C (-4 to 122°F)
  • Size (w x d x h): 158 x 257 x 182 mm (6.2 x 10.1 x 7.2 in.)
  • Weight with Battery: 2.4 kg (5.3 lb.)
  • Standard Battery: BDC46B (Rechargeable Li-ion, 7.2V, 2.45Ah)
  • Operating Time: Approx. 16 hours at 25°C (77°F)
