Description

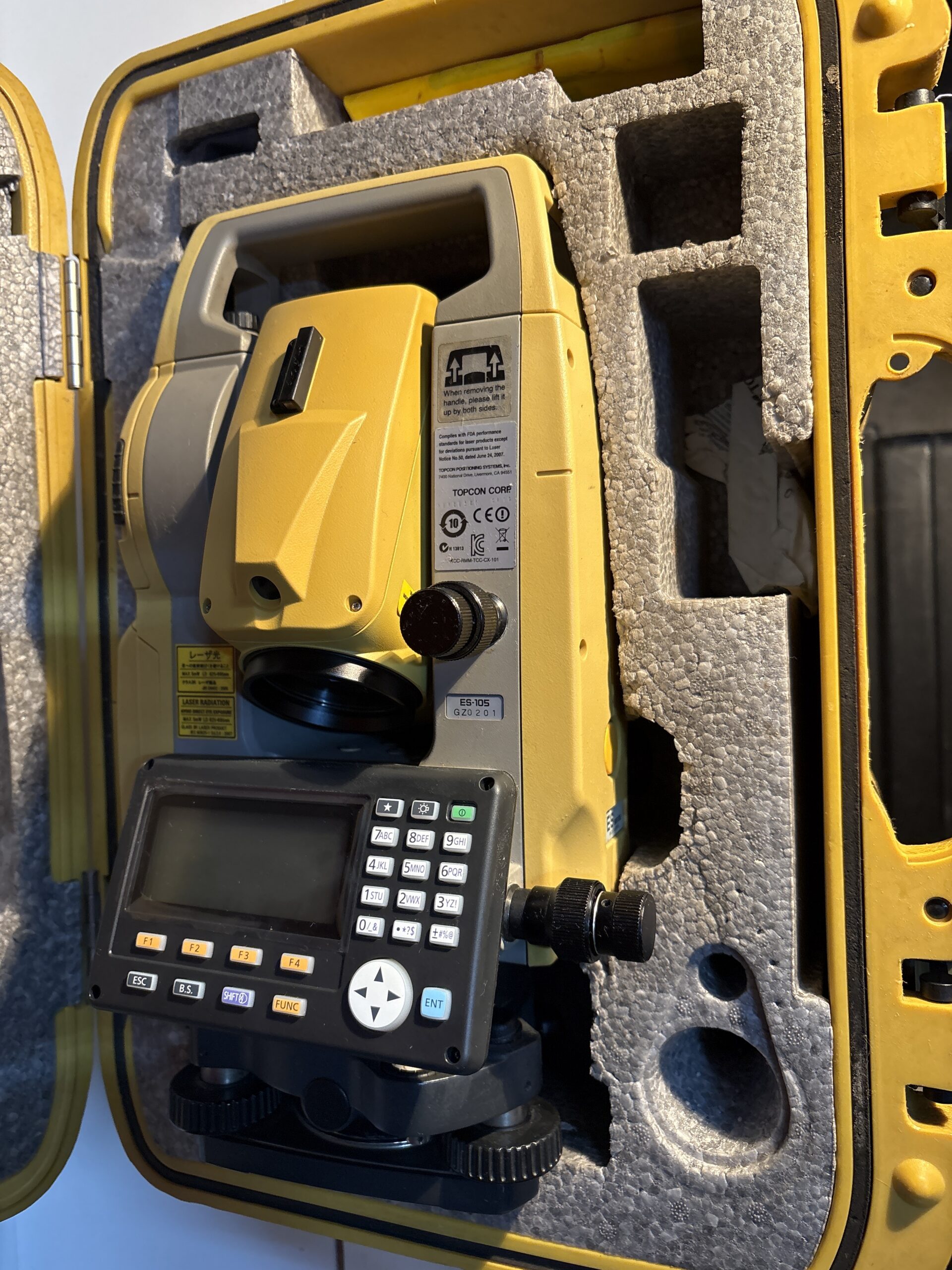

In good, clean condition
Missing items: battery, charger, and 1 latch case

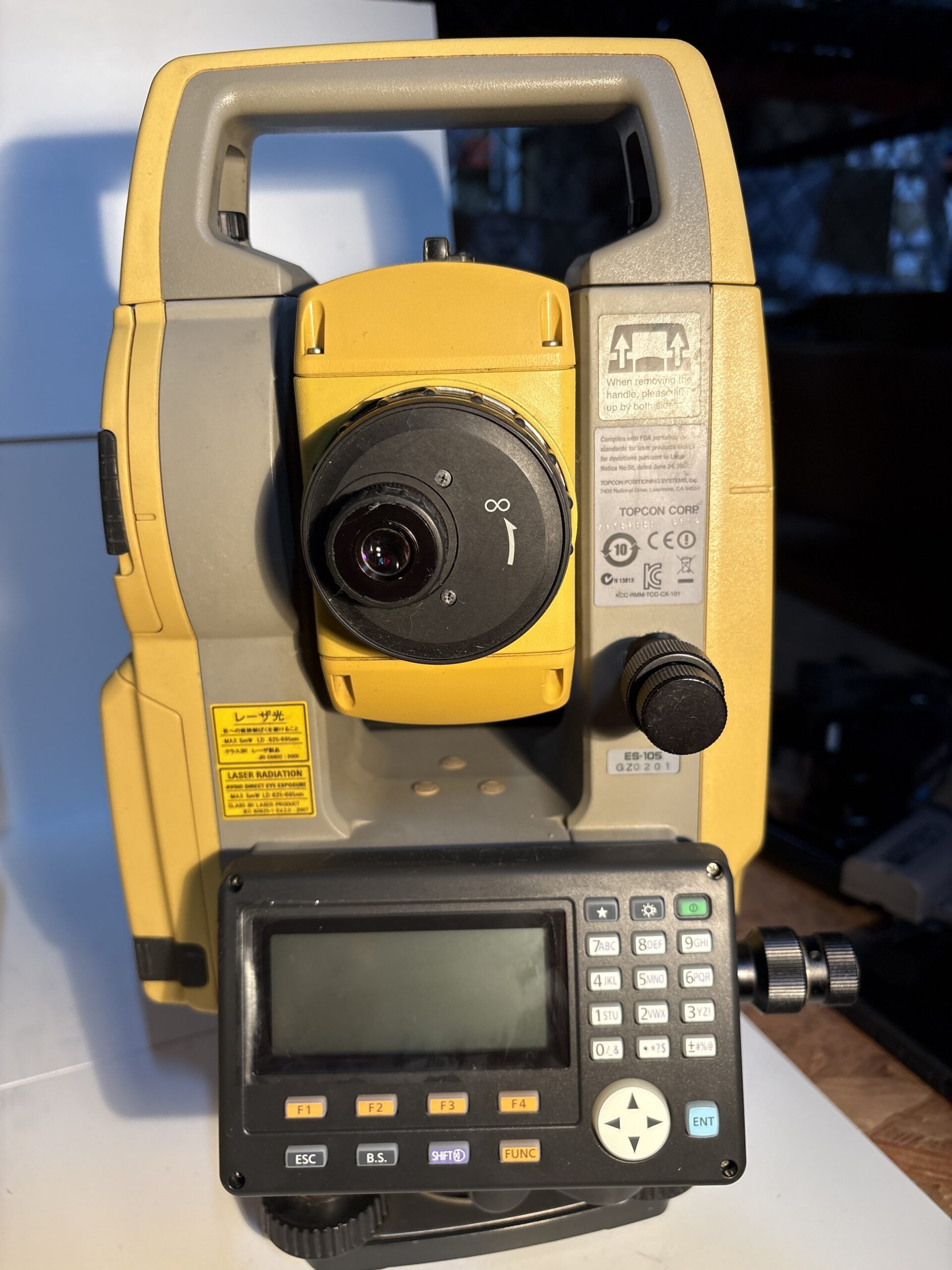

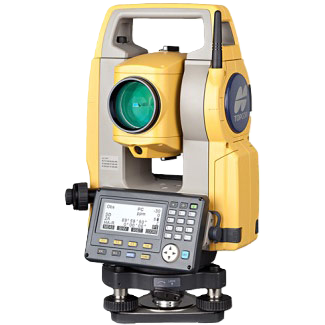

The Topcon ES-105 is a 5″ reflectorless total station built for reliable surveying, construction layout, mapping, and general field measurement applications. Featuring a dual display and keyboard, laser plummet, and Topcon’s ES Series reflectorless EDM technology, this instrument gives field crews a practical balance of accuracy, speed, and jobsite durability. Topcon’s ES Series specifications list the ES-105 with 1″ minimum angle resolution and 5″ accuracy.
Designed for efficient measurement workflows, the ES-105 offers reflectorless measurement up to 500 m and prism measurement up to 4,000 m, with distance accuracy listed at 2 mm + 2 ppm with a prism and 3 mm + 2 ppm in non-prism mode from 0.3 m to 200 m. The ES Series also supports fast measurement speeds, including fine measurement in 0.9 seconds, rapid measurement in 0.7 seconds, and tracking in 0.3 seconds.
The Topcon ES-105 includes field-ready features such as LongLink Bluetooth Class 1 communication, USB 2.0 connectivity, RS-232C serial communication, up to 36 hours of battery operation, and an IP66 dustproof/waterproof rating. Its dual backlit LCD display, laser plummet, electronic leveling system, guide lights, and onboard measurement software make it a dependable choice for crews needing a rugged, easy-to-use total station for everyday field work.
Key Features:
- Topcon ES-105 reflectorless total station
- 5″ angular accuracy
- Dual display and keyboard
- Laser plummet
- 500 m reflectorless/non-prism range
- 4,000 m prism EDM range
- Prism accuracy: 2 mm + 2 ppm
- Non-prism accuracy: 3 mm + 2 ppm
- LongLink Bluetooth Class 1 communication
- USB 2.0 and RS-232C connectivity
- Up to 36 hours battery operation
- IP66 dustproof and waterproof design
- Ideal for surveying, construction layout, mapping, and field measurement applications
