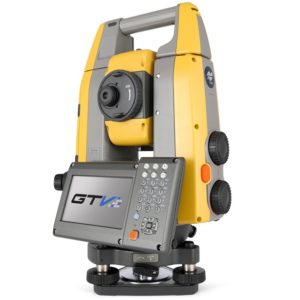

Topcon GT-503 Robotic

$20,960.00

Call Laser Liquidators today –

For your best price quote!

214-260-8010

SKU: 213057122-2 Category: Tag:

Description

Call us today at 214-280-8010

The GT series of robotic total stations are the smallest, lightest, and fastest robotic station you can find. You get the efficiency of a single-operator robotic system, the power of long-range reflectorless measurements, and the ability to perform as a hybrid positioning solution. All in a compact system that’s a third smaller and twice as fast.

UltraSonic technology is the driving force for the GT Series. You can see and hear the difference immediately. The UltraSonic motors are the fastest available in the market – at 180 degrees per second, it’s the smoothest and most accurate prism-tracking available.

Ultra Sonic Motor Technology
30% smaller and lighter than previous models
3-Year complete Warranty
5-Year Motor Warranty
3″ Angle Accuracy



Specifications

Telescope
Resolving power 2.5″
Magnification 30x
Angle Measurement
iX-502 2″
iX-503 3″
iX-505 5″
Tilt Angle Compensation
Compensation Liquid 2-axis tilt sensor
Range ±6’
Distance Measurement
Prism EDM Range
4,000 m
Non-Prism Range
600 m
Non-Prism Accuracy 2+2 ppm
Prism Accuracy
2+2 ppm
Measure Time Fine: 0.9 sec
Rapid: 0.6 sec
Tracking: 0.4 sec

Brochure

Sokkia iX Brochure >>
