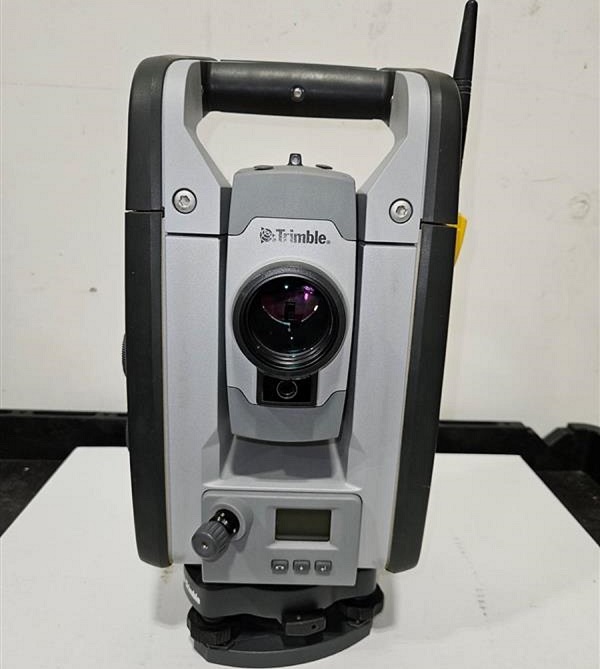

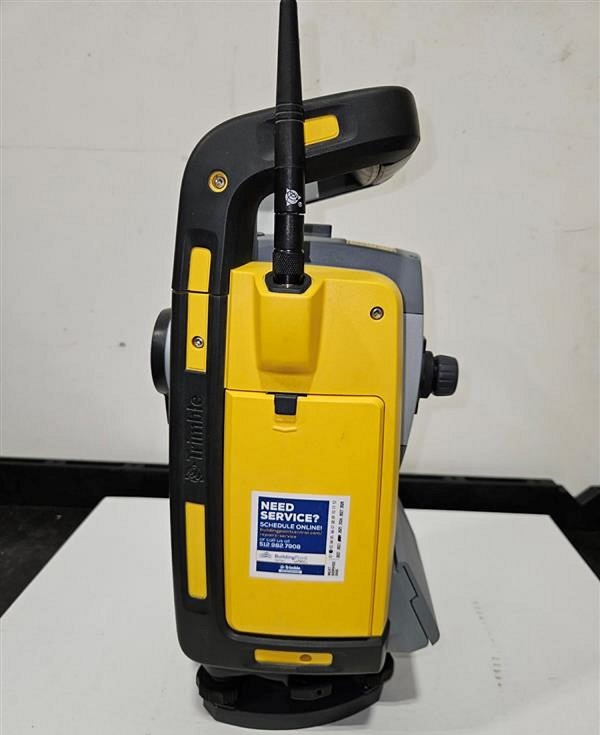

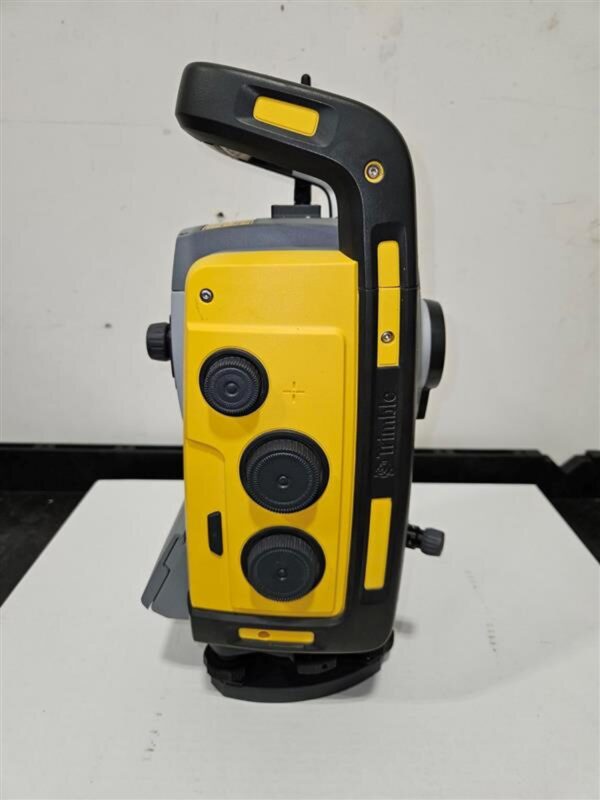

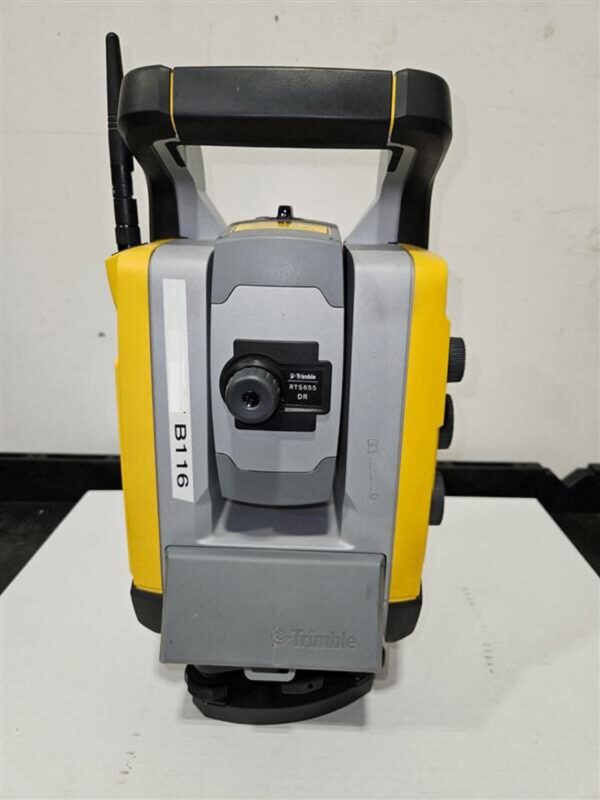

Trimble RTS655 Robotic Station

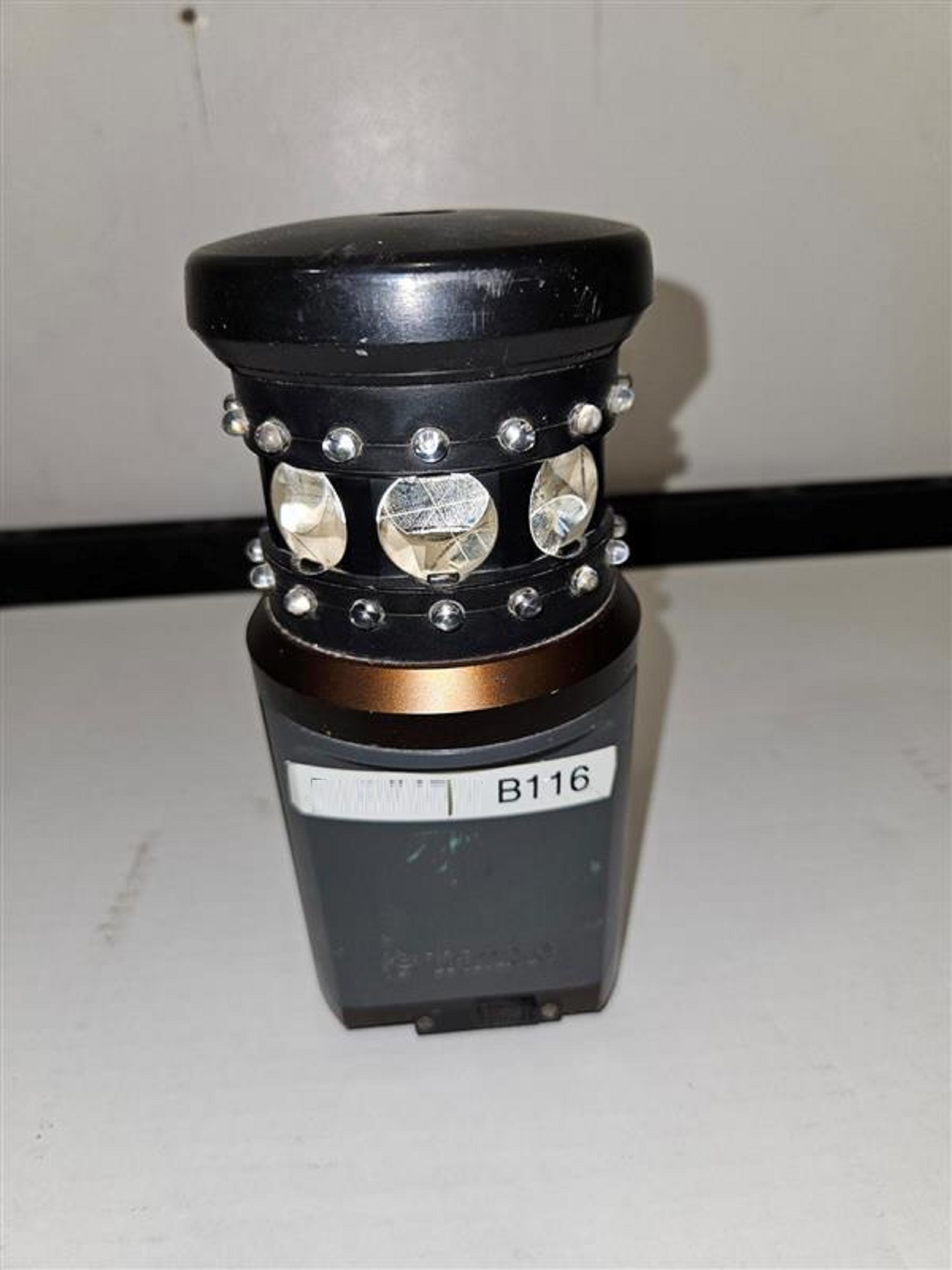

Trimble RTS-655 with MT-1000 Prism and T-100 tablet with Field Link Software, perfect for MEP layout.

In stock

SKU: RTS655 Category:


For contractors requiring longer range and higher accuracy, Trimble offers the RTS655 Robotic Total Station. With robotic radio range of up to 2300 ft (700 meters), superior prism tracking, and high accuracy EDM performance, these total stations are capable of handling the largest commercial layout jobs. Additionally, the rugged RTS portfolio of Robotic Total Stations are built to withstand tough jobsite conditions, minimizing downtime due to repair.

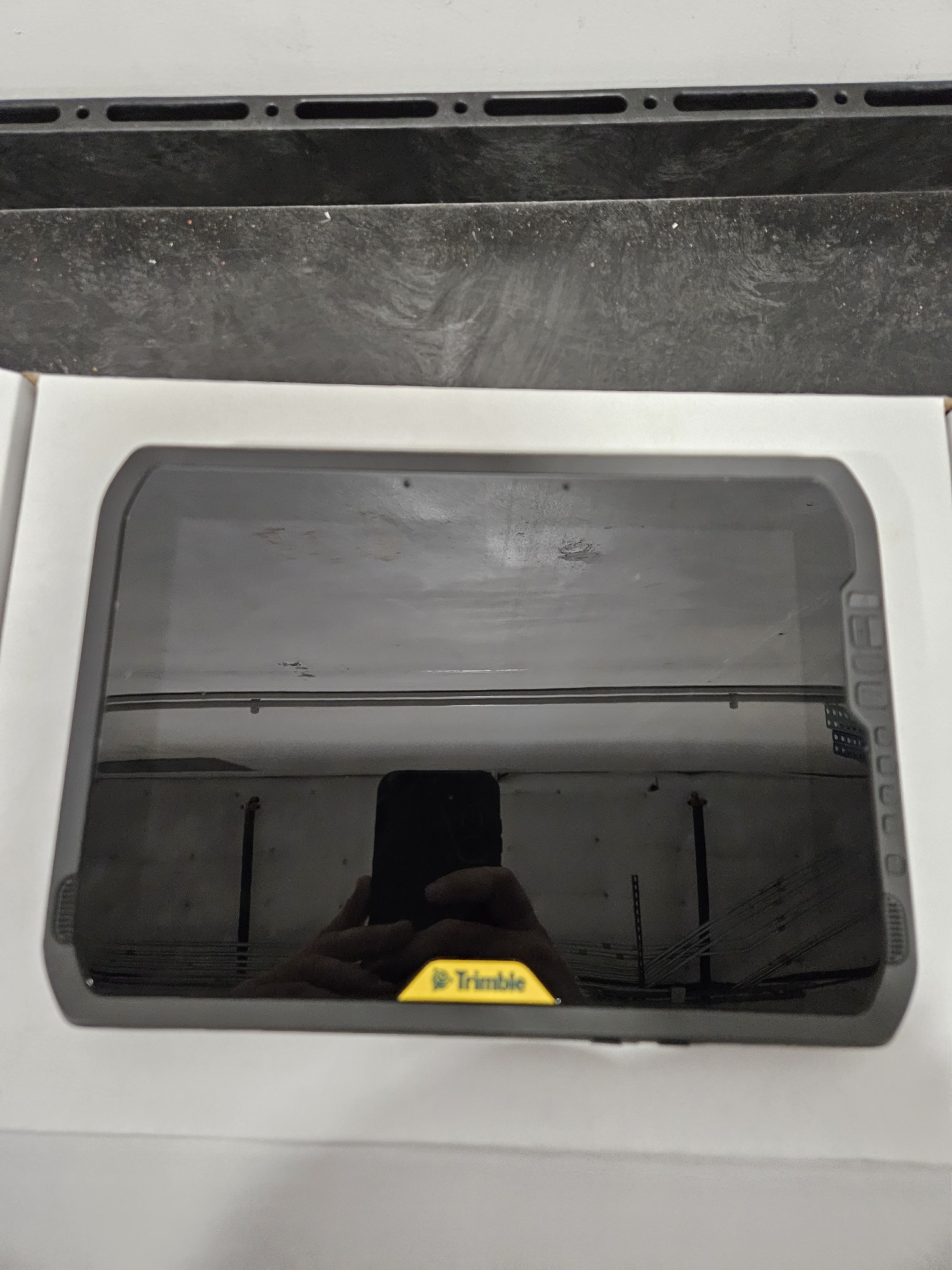

Construction-specific functionality in the Trimble T-100 with Field Works, allows general and concrete contractors to perform jobsite layout and measurement tasks for maximum flexibility and cost savings.

Trimble Construction Positioning Solutions allow contractors to carry, manage, work with and layout the jobsite blueprint, regardless of the method and instrumentation used in a variety of commercial and residential building applications, including:

  • Layout control points on or offset to construction lines
  • Check or tie into property boundaries
  • Layout excavation lines
  • Layout of concrete forms and anchor bolts
  • As-built checks
  • Layout control lines on concrete pad for subcontractor use
  • Light topographical measurements for cut/fill balance


We have 2 units, both similar condition, working, good batteries.  The Field Link software is on subscription with a few months left so plan on renewing that with your preferred Building Point dealer.

Units were originally purchase new in 2020 and the tablets are all from 2022 & 2023.

They both include a 60-Day warranty.

Prism poles are included

Tripods to be purchased seperatly


Trimble RTS655 Robotic Total Stations Specifications

Robotic Communication Type Internal 2.4GHz Radio
Robotic Communication Type < 700 m (2296 ft.)
Angle Accuracy – DIN18723 Horizontal: 5″ (1.5 mgon) Vertical: 5″ (1.5 mgon)
Standard Measurement ± 2 mm = 2 ppm
Measurement Distance – 1 Prism < 3,000 m (9,800 ft.)
DR Range – Kodak (90% reflective) Up to 150 m (492 ft.)
Operating Temperature -20 ºC to 50 ºC (-22 ºF to 140 ºF)
Dust and Water Proofing IP55
Operating Time Approx. 6 hours on single battery


Trimble-RTS655 Brochure
